DIAGNOSTICS, RE-PROGRAMMING, ABS BRAKE BLEEDING

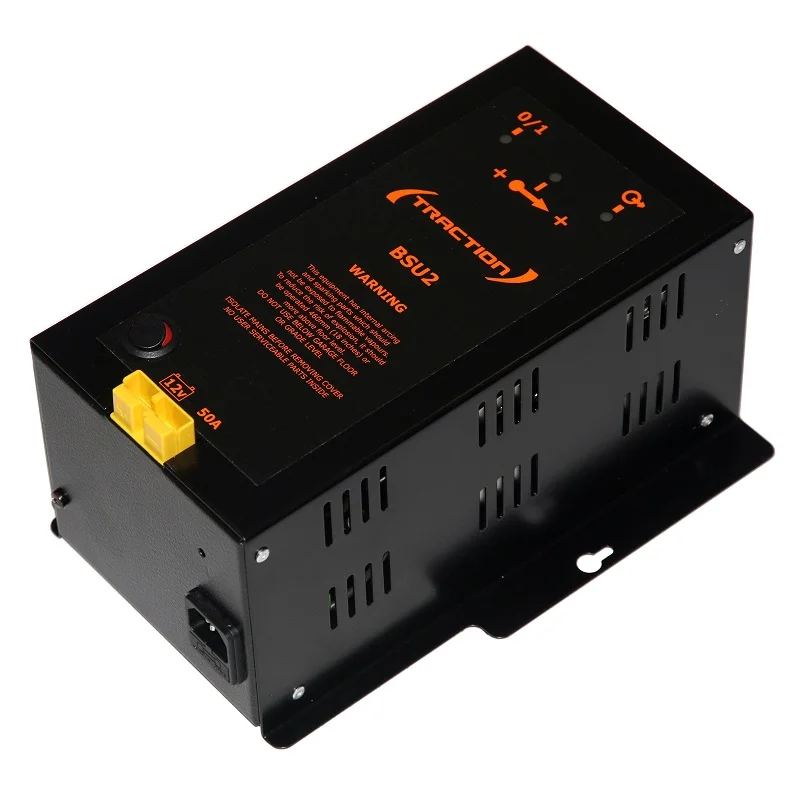

BSU2 provides a stable voltage and up to 50 amps (dependant on model) of fully regulated power to prevent loss of charge and damage to the battery.
BSU2 can be used with any 12V automotive battery including AGM and GEL.
When the battery is charged the BSU is a regulated power supply to sustain accessory loads and offset parasitic drain.
Can be used in the showroom to maintain the battery charge while power consuming accessories are being demonstrated without fear of power loss.
Reverse polarity protection.
Supplied with 5M IEC power lead.
FEATURES
BSU2 provides a constant voltage to prevent loss of data and possible damage to control units during software updates, and module reprogramming as well as diagnostic processes when in a Key On, Engine Off state.
During diagnostic or programming operations, the vehicle’s systems are operating solely from the battery. Maintaining battery charge during this process is critical.
The status of BSU2 is indicated simply by three LED’s – POWER, POLARITY, DEMAND. When all 3 are illuminated, BSU2 is supporting the battery.
Designed to be wall or ramp mounted the BSU2 has been designed to meet the needs of the high power consuming vehicle.
Approved by Jaguar, Landrover, Volvo.
Available in 2 formats:
Std – 2.5M output leads
OEM – 4M output leads
SPECIFICATION
Input: 100–240VAC 50/60Hz
Output: 13.4V up to 50A continuous
Weight: 6.5 Kg
Size: 257 x 160 x 130 mm
Carton: 320 x 250 x 230 mm
DIAGNOSTICS, RE-PROGRAMMING, ABS BRAKE BLEEDING
BSU2 provides a stable voltage and up to 50 amps (dependant on model) of fully regulated power to prevent loss of charge and damage to the battery.
BSU2 can be used with any 12V automotive battery including AGM and GEL.
When the battery is charged the BSU is a regulated power supply to sustain accessory loads and offset parasitic drain.
Can be used in the showroom to maintain the battery charge while power consuming accessories are being demonstrated without fear of power loss.
Reverse polarity protection.
Supplied with 5M IEC power lead.
FEATURES
BSU2 provides a constant voltage to prevent loss of data and possible damage to control units during software updates, and module reprogramming as well as diagnostic processes when in a Key On, Engine Off state.
During diagnostic or programming operations, the vehicle’s systems are operating solely from the battery. Maintaining battery charge during this process is critical.
The status of BSU2 is indicated simply by three LED’s – POWER, POLARITY, DEMAND. When all 3 are illuminated, BSU2 is supporting the battery.
Designed to be wall or ramp mounted the BSU2 has been designed to meet the needs of the high power consuming vehicle.
Approved by Jaguar, Landrover, Volvo.
Available in 2 formats:
Std – 2.5M output leads
OEM – 4M output leads
SPECIFICATION
Input: 100–240VAC 50/60Hz
Output: 13.4V up to 50A continuous
Weight: 6.5 Kg
Size: 257 x 160 x 130 mm
Carton: 320 x 250 x 230 mm
