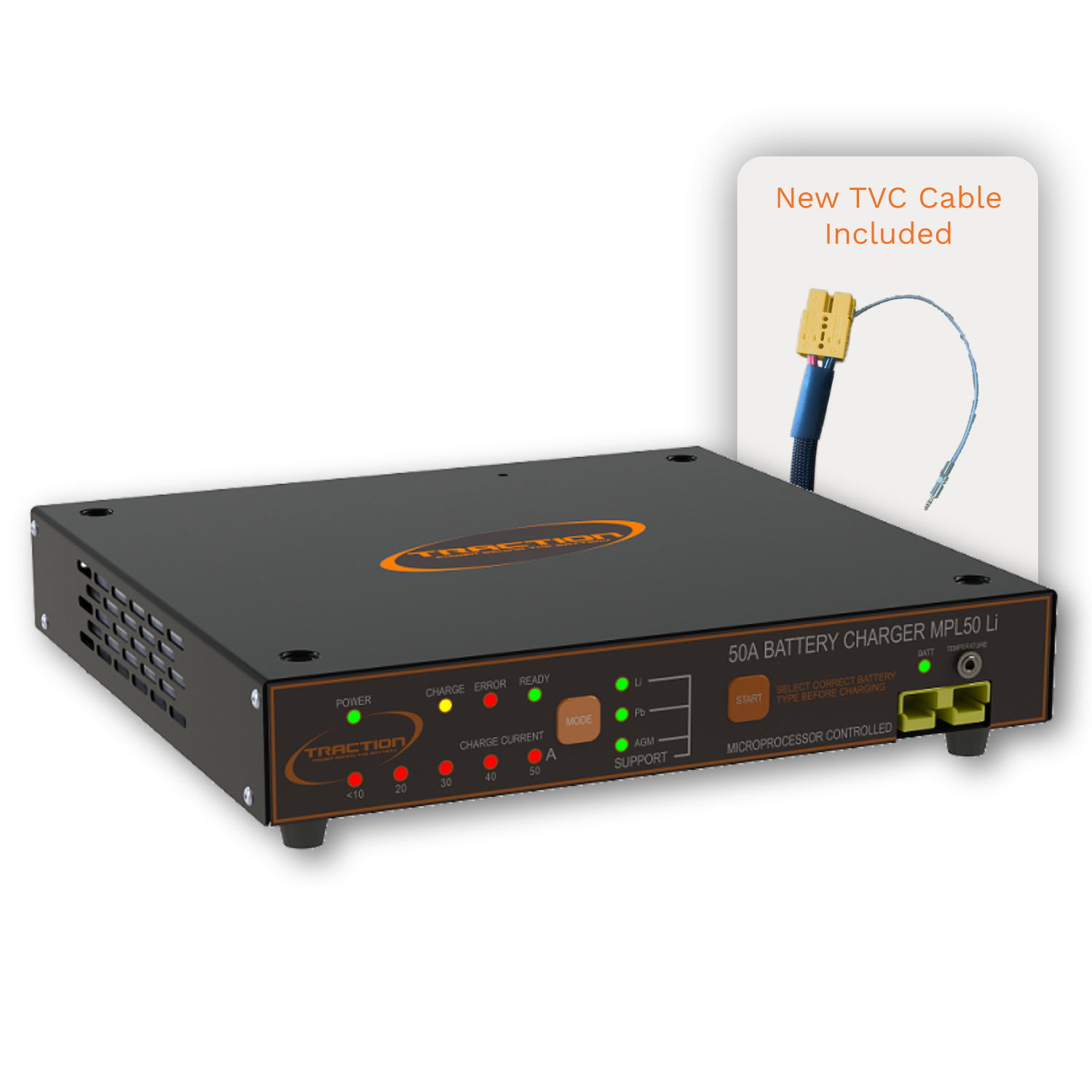

MPL50 Li TVC

£1,100.00

Based on the proven and reliable MPL50 Li platform, the TVC version offers an additional integrated Thermal and Voltage Compensation (TVC) cable. This enhanced DC lead incorporates clamp-level temperature sensing and real-time, battery-post voltage feedback, enabling the charger to deliver greater protection and more precise charging performance in demanding workshop environments.

The TVC edition adds two advanced optimisation functions for workshops requiring maximum accuracy under high load or variable thermal conditions.

Thermal Protection

Clamp-level temperature sensing allows the MPL50 Li TVC to automatically reduce current if the clamps or battery posts begin to overheat. This protects the components during extended support mode operation, heavy diagnostic loads, or high-temperature environments.

Enhanced Precision

The MPL50 Li TVC retains all charging modes, safety systems and output capability of the standard MPL50 Li. The TVC cable simply adds greater accuracy and protections where workshops conditions demand and require it.

Voltage Compensation

Real-time voltage feedback from the battery posts enables the charger to compensate for cable-related voltage drop. The MPL50 Li ensures the voltage delivered at the battery is the same as the charger's profile output, maintaining optimal charging effectiveness and consistent performance.

Ultra Low Recovery Mode

When batteries are deeply discharged, most chargers can't recover them. MPL50-Li has our unique Ultra Low Recovery Mode can bring a battery back from as low as 1V. From there, it restores it to a usable charge level, and fully charges it if applicable.

Rugged Industrial Design

Designed to withstand heavy-duty workshop use

Active Current Monitoring

Displays how much current is being delivered

Detachable Cables

Allows for easy replacement or for cable upgrades

Technology Selection

Specific modes for Lithium LiFePO4, Flooded and AGM/GEL

Specifications

Input
115 - 240 VAC / 50-60Hz
Output
12V / 50A
Power Supply
50A @ 13.6V
Charging Voltage (WET, AGM, GEL)
14.5V
Charging Voltage (Lithium LiFePO4)
13.6V
Compatible Battery Technologies
WET, AGM, GEL, Ca/Ca, Ca/Ag, EFB, LiFePO4
Minimum Starting Voltage
1V
Safety Features
Reverse Polarity Protection & Spark Free
Ambient Operating Temperature
0°C to 40°C
Dimensions (L x W x H)
280 x 260 x 47 mm
Mains Cable Length
2.4 MTR Detachable
Charge Cable Length
4.7 MTR Detachable
Weight
3.7 KG
Warranty Period
2 Years

Accessories

MPL50-Li Lithium Software Update Cable

£100.00

Software update cable for the MPL50-Li Lithium Charger

Part number JLR-LI-PC01

Please refer to JLR Topix for software update
